Inside WebViewer

Inside WebViewer: instantiation, iframe & loading from another domain

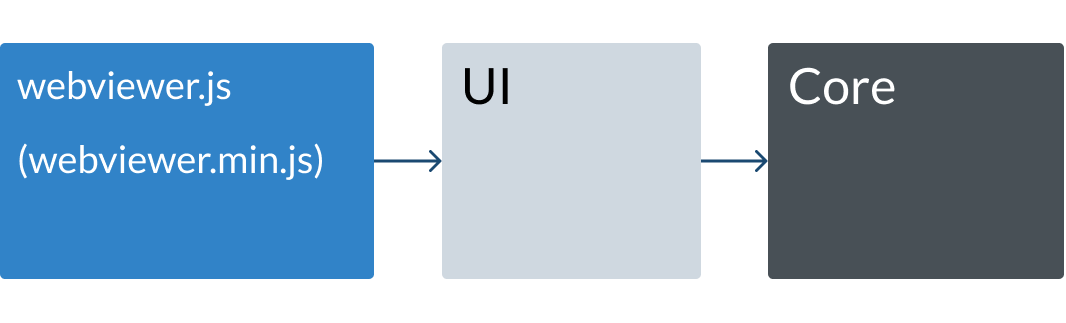

When you download the WebViewer package, it contains three main components:

WebViewer components

webviewer.js is the main entry point of this package that uses UI and Core to render the WebViewer app inside an iframe. So, after importing webviewer.js, the WebViewer app (composed of UI and Core) can be instantiated by using the PDFTron.WebViewer constructor. If you look at the viewing sample , you will see that the app is created inside an iframe.

WebViewer in iframe

Details of instantiation

The instantiation can be summarized in one sentence.

Instantiation === Webviewer creating the iframe-wrapped app based on the options

For example, for this code:

  initialDoc: 'mydoc.pdf',
  ui: 'legacy'
}, viewerElement)
  .then(instance => {
    // API functions are now ready to be called on instance

the following steps will be executed:

  1. The constructor is telling webviewer.js to render the legacy UI app in viewerElement
  2. The legacy UI sees the initialDoc option and calls loadDocument function from Core
  3. Core processes the myDoc.pdf document and renders it in the legacy UI

WebViewer also has other constructor options for configuring the viewer.

WebViewer's iframe

It's important to remember that WebViewer's iframe is a completely separate window, isolated from your own HTML page. Then how do you access objects inside the iframe to call functions or to listen to events? You can do that with the instance that's returned from the constructor's promise.

instance argument that's returned from a promise is an object that contains objects and namespaces from the iframe as well as helpful APIs. So you can call instance.Core.documentViewer.addEventListener('documentLoaded', documentLoadedHandler); to run functions when a document is loaded, instance.Annotations to see different annotations classes available, or instance.setCurrentPageNumber(5); to navigate the viewer to page 5.

Refer to WebViewer class API for more details.

Loading WebViewer from another domain

It's possible to load WebViewer's lib folder from another domain by setting the path constructor option to an absolute URL (e.g. This will work, however there are some considerations to take into account because the iframe page is no longer on the same origin.

When you call an API on the WebViewer object, behind the scenes it reaches into the iframe and calls functions in that context. When the iframe is on a different domain then cross origin script access applies and WebViewer will no longer be able to call functions inside the iframe.

For example none of the following will work:

  .then(instance => {
    // instance is undefined!

In this case you have two options to interact with and customize WebViewer.

  1. Run your custom code in a config file . Config files are loaded and executed inside the iframe so they run in the iframe's context and have no problem accessing the APIs. Make sure to follow this step so that the config file is able to be loaded.

  2. Use the window postMessage API to communicate between your page and the iframe. For example you could send a message to the iframe with the value being the URL to the document you want to load. The iframe would handle this message in a config file and call readerControl.loadDocument to load the document from the new URL.
